About Hi-WAX™Products

Hi-WAX™ Characteristics

Properties

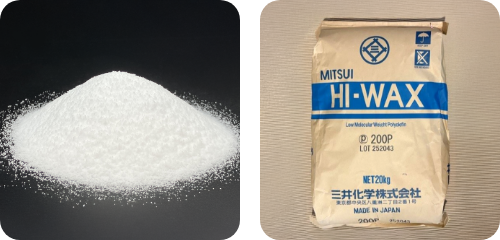

Mitsui Chemicals’ proprietary polyethylene wax with excellent quality stability and workability

Characteristics
Low molecular weight resin. Solid at room temperature. Melts upon heating (~150°C) with low melt viscosity.
Product Category
crystalline polyolefin
Moleculer weight
Approximately 1,000 to 10,000
Performance
Attributes
releasability, Abrasion resistance, Fluidity, dispersibility, compatibility
Mitsui Chemicals’ proprietary polyethylene wax with excellent quality stability and workability

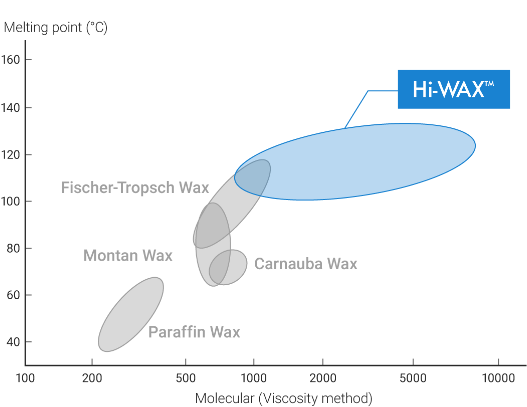

Physical Property Range of Waxes (Molecular weight - Melting point)

Physical Property Range of Waxes (Molecular weight - Melting point)

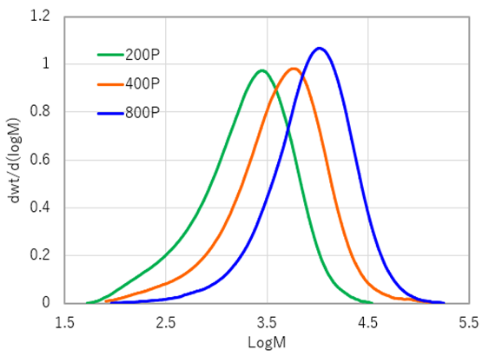

Molecular Weight Distribution of Hi-WAX™ Grades (GPC chart)

Molecular Weight Distribution of Hi-WAX™ Grades (GPC chart)

The information provided is based on currently available materials, data, and sources, and no guarantees are made regarding the data or evaluations.

Properties by type

Through polymerization, both ‘Non-modified’ and ‘modified’ types have distinct characteristics and can be used in a wide range of applications.

Properties by type

Physical property table

classification Non-modified Type modified Type
High-density type Low-density type Oxidized type
(Low acid value)		 Oxidized type
(High acid value)		 Acid-modified
type
Physical properties Items units 100P 200P 400P 800P 110P 220P 320P 420P 720P 220MP 320MP 405MP 4052E 4202E 1105A 2203A
HP10A* 200PF* 400PF* 800PF* 405MPF*
Molecular
weight		 − 900 2000 4000 8000 1000 2000 3000 4000 7200 2000 3000 4000 3000 2600 1500 2700
Density kg/m3 950 970 980 970 920 920 930 930 920 920 930 960 970 950 940 930
Acid Value mgKOH
/g		 − − − − − − − − − 1 1 1 20 17 60 30
Crystallinity ％ 90 87 85 84 80 70 65 70 60 65 70 80 75 62 60 65
Melting
point		 ℃ 116 122 126 127 109 110 109 113 113 107 107 121 110 100 104 107
softening
point		 ℃ 121 130 136 140 113 113 114 118 118 113 114 128 115 107 108 111
Hardness
(Penetration)		 10-1mm 2 1 <1 <1 25 13 7 3 3 14 7 1 4 5 6 3
Melt viscosity
(140°C)		 mPa・s 15 80 600 8000 20 80 250 650 6000 80 250 650 440 300 150 300
Properties High hardness and softening point due to high density and crystallinity. Low density and crystallinity that are attributable to low hardness and softening point. Good affinity with polar polymers, Inorganic compound, metals, etc. Emulsifiable (High Acid-value grades).
Reactive with alcohols, amines, isocyanates, oligomer with epoxy group, etc.(Acid-modified grades)

Note: HP10A and those ending with “F” (200PF, 400PF, 800PF, 405MPF) are smaller particle size grades.

Application compatibility table

classification Non-modified Type modified Type
High-density type Low-density type Oxidized type
(Low acid value)		 Oxidized type
(High acid value)		 Acid-modified
type
100P 200P 400P 800P 110P 220P 320P 420P 720P 220MP 320MP 405MP 4052E 4202E 1105A 2203A
Examples of applications Engineering Plastic Modifier   ◯ ◯ ◯               ◯ ◯   ◎ ◯
Ink and coating additive ◯ ◎ ◎ ◯ ◯ ◯ ◯ ◯   ◯ ◯ ◯ ◯ ◎ ◯ ◯
Filler dispersant   ◯ ◯       ◯ ◯         ◯ ◎ ◎ ◯
Releasing agent ◯ ◯ ◎ ◎     ◯ ◯       ◎
PVC lubricant   ◯ ◯   ◯ ◯ ◯ ◯   ◎   ◯   ◎ ◯ ◯
Pigment dispersant   ◯ ◯   ◯ ◯ ◎ ◎ ◯   ◯ ◯ ◯ ◯ ◯ ◯
Textile treatment agent                         ◯ ◎ ◯ ◯
Rubber processing aid   ◯ ◯   ◎ ◎       ◯
hot melt   ◯ ◯   ◯ ◯   ◯   ◯     ◯ ◯
Molding aid   ◯ ◯       ◯ ◯
Expandable polystyrene
beads (EPS)
 ◯ ◯       ◯
Asphalt modifier
 ◯ ◎           ◯             ◯

◎：Highly recommended　◯：Recommended
Compliance with various regulations differs depending on the product grade. Please inquire before use.

Product map

Product map

※ HP10A and Brands with a F suffix have a small grain size.
