Case study

Engineering Plastic Modifier

Polycarbonate (PC) / Glass Fiber Compound

Impact resistance improvement (Hi-WAX™ addition enhances impact resistance and rigidity)

[Formulation]: Polycarbonate (PC)/ Glass Fiber (GF) =90/10wt%
Additive:Hi-WAX™ 1105A = 0~3phr*
[Recommended grade]: Hi-WAX™ 1105A, 2203A

Impact resistance Charpy Impact Strength/23°C

Rigidity Flexural Modulus

The addition of 1105A improves the impact resistance and rigidity of glass fiber reinforced PC compounds.

The information provided is based on currently available materials, data, and sources, and no guarantees are made regarding the data or evaluations.

Modification by Hi-WAX™ (PC/GF)

PC:: Melt Volume Rate(MVR):11㎤/10 min(300°C,1.2kg), Density:1,200kg/㎥
GF:: Chopped Fiber(Fiber Length:3mm, Fiber Diameter:13μm)
Additive:: Hi-WAX™ 1105A … Moleculer weight: 1,500, Density:940kg/㎥ Acid Value:60mgKOH/g

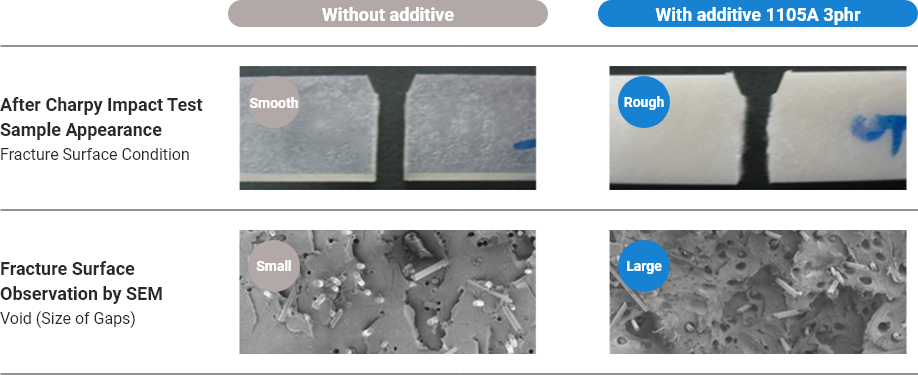

After Charpy Impact Test Sample Appearance

It is presumed that the addition of 1105A promotes void formation at the resin/GF interface during impact testing, thereby improving impact resistance.

Polyamide (PA)/Glass Fiber Compound

Release Property Modification (Hi-WAX™ addition improves mold release and stabilizes color tone)

[Formulation]: PA6/GF =70/30wt%, Additives: 0.5phr
[Molding]: Twin-screw Extruder (25mmφ, Cylinder Temperature 240°C)
Injection Molding (Cylinder Temperature 250°C, Mold Temperature 80°C)
[Recommended Grades]: Hi-WAX™ 200P, 400P, 800P, 405MP

Compared to montan acid ester, Hi-WAX™ has inferior mold release properties but superior mechanical strength.

The information provided is based on currently available materials, data, and sources, and no guarantees are made regarding the data or evaluations.

Heat Resistance Evaluation

PA6:: MVR: 11㎤//10min (235°C, 1.0kg), Density: 1140kg/㎥
GF:: Chopped Fiber (Fiber Length: 3mm, Fiber Diameter: 11μm)
Additive:: Hi-Wax™ 405MP … Moleculer weight: 4000, Density: 960kg/㎥ Acid Value: 1mgKOH/g
Hi-Wax™ 800P … Moleculer weight: 8000, Density: 970kg/㎥
Montan Acid Ester … Acid Value 18mgKOH/g, Drop Point: 81°C
Calcium Montanate … Acid Value: 10 mgKOH/g, Calcium Content: 4%

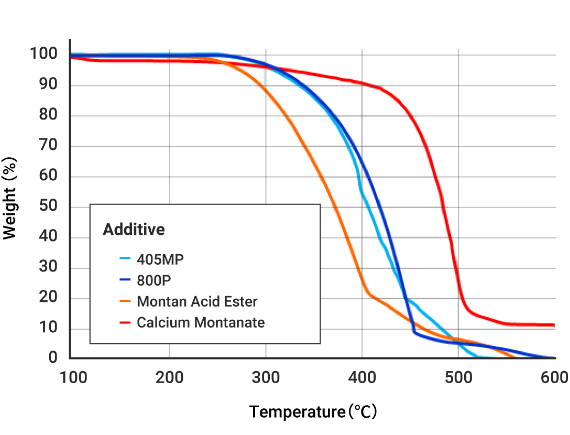

Thermogravimetric Analysis Chart
(Aeration, Heating Rate: 20°C/min.)

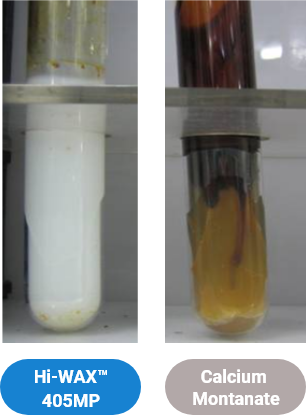

Heat-resistant Hue Evaluation
(180°C, 24 Hours)

Hi-Wax™ enables enhanced mold release properties without compromising mechanical strength or color tone.

The information provided is based on currently available materials, data, and sources, and no guarantees are made regarding the data or evaluations.
