PROPERTIES
Characteristics

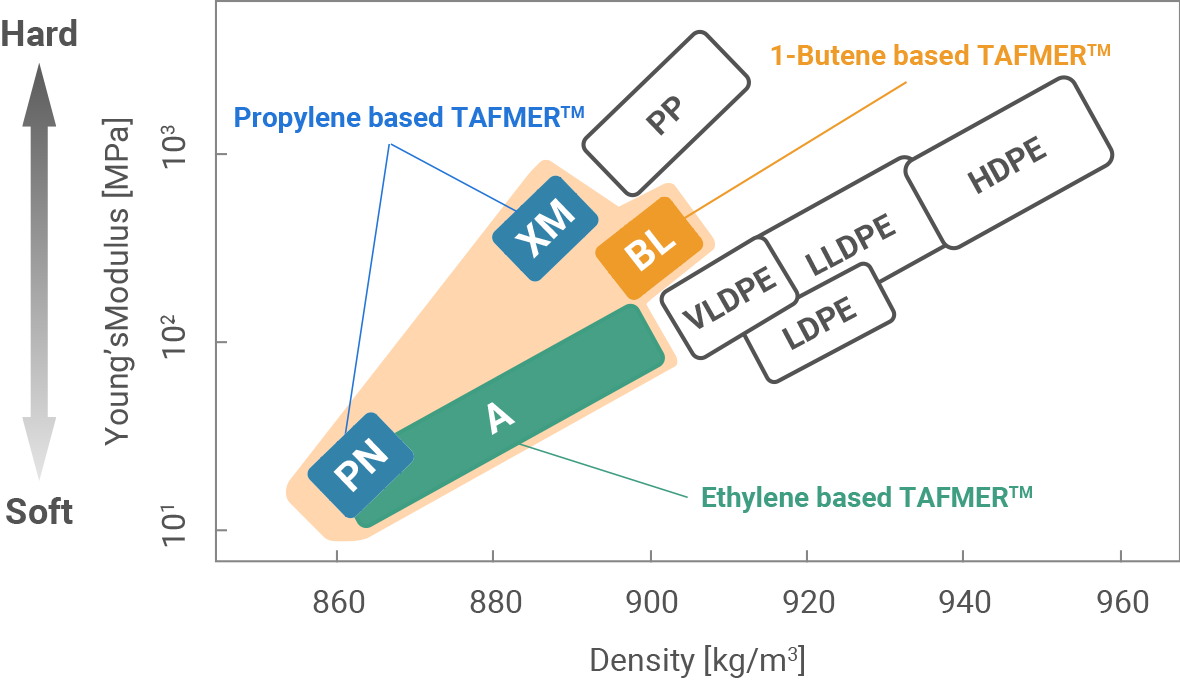

TAFMER™ polyolefin elastomer is a low-crystallinity alpha-olefin copolymer that features softness, low melting point, and compatibility with polyethylene (PE) and polypropylene (PP).
TAFMER™ enables the film engineer or package designer to:
-
Optimize Heat Seal Properties
and Retain Transparency
-
Maximize Impact Resistance
-
Adjust Easy-Peel Properties
TAFMER™ for widening heat seal window
TAFMER™ polyolefin elastomer is a low-crystallinity alpha-olefin copolymer that features softness, low melting point, and compatibility with polyethylene (PE) and polypropylene (PP).
Detailed results and conditions
Improvement of appearance after heat-sealing

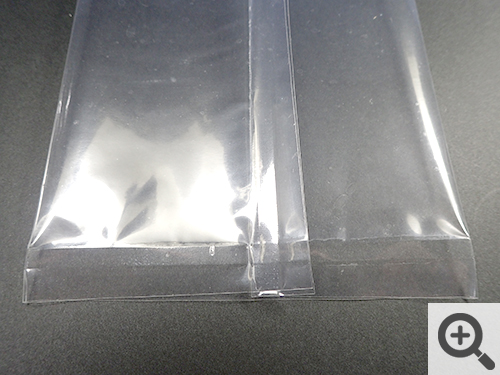

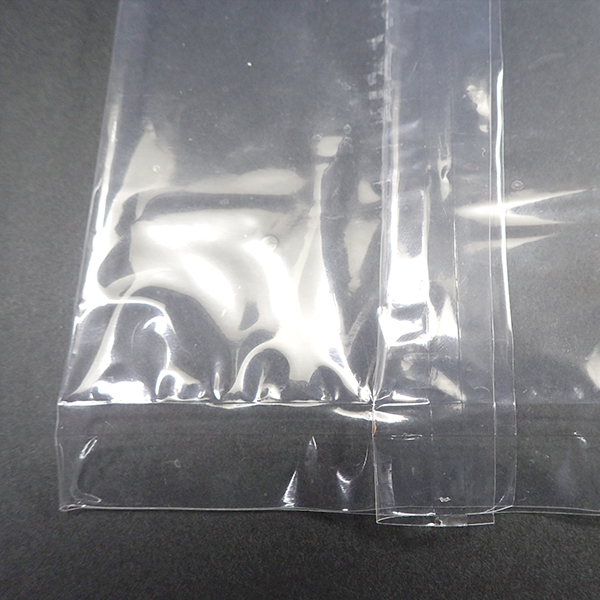

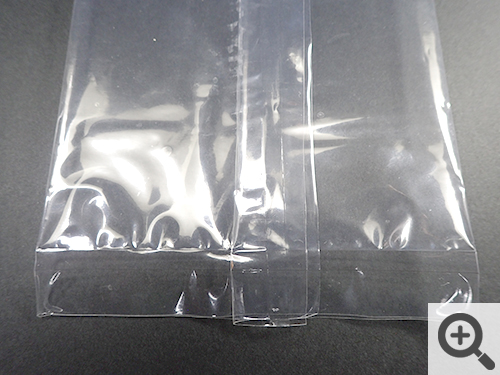

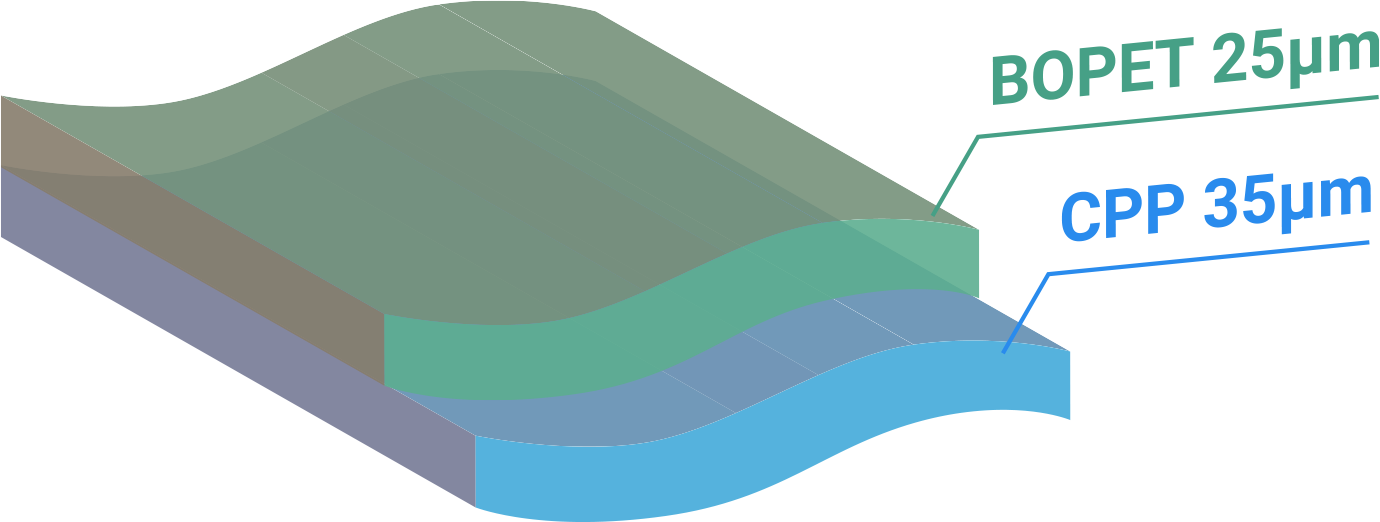

A conventional structure of BOPET/CPP provides good appearance with no significant shrinkage after heat sealing.
-

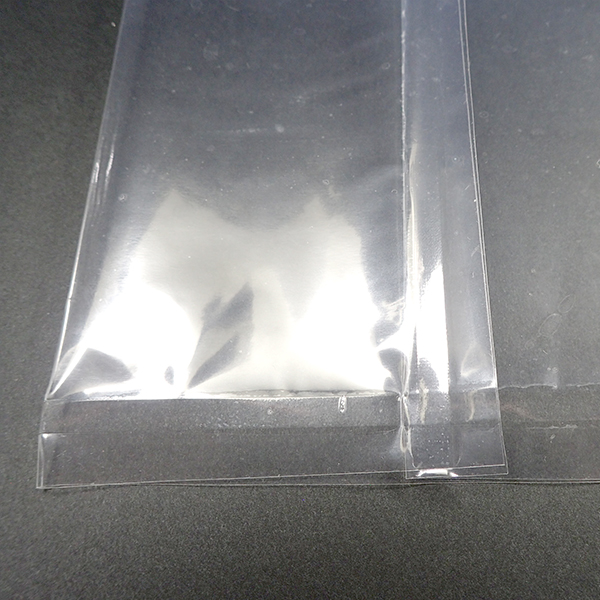

Conventional structure -
Heat sealed at 140℃

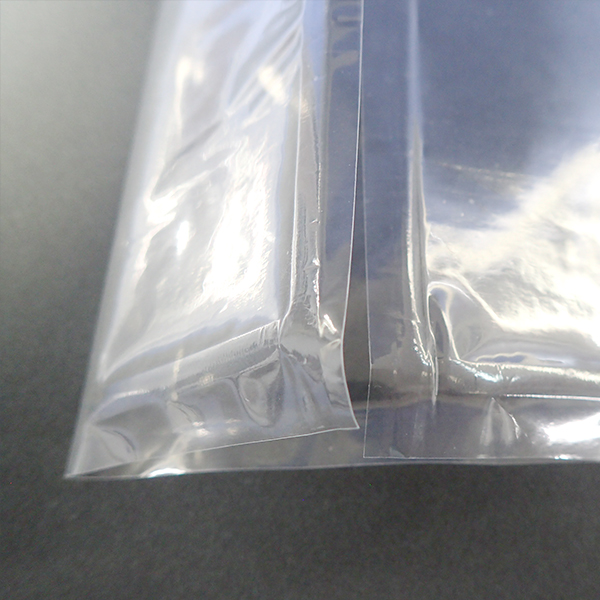

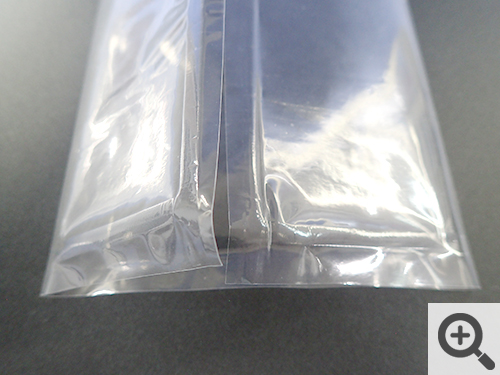

Replacing BOPET with BOPP in the substrate, however, leads to poor appearance due to the lower heat resistance of BOPP.

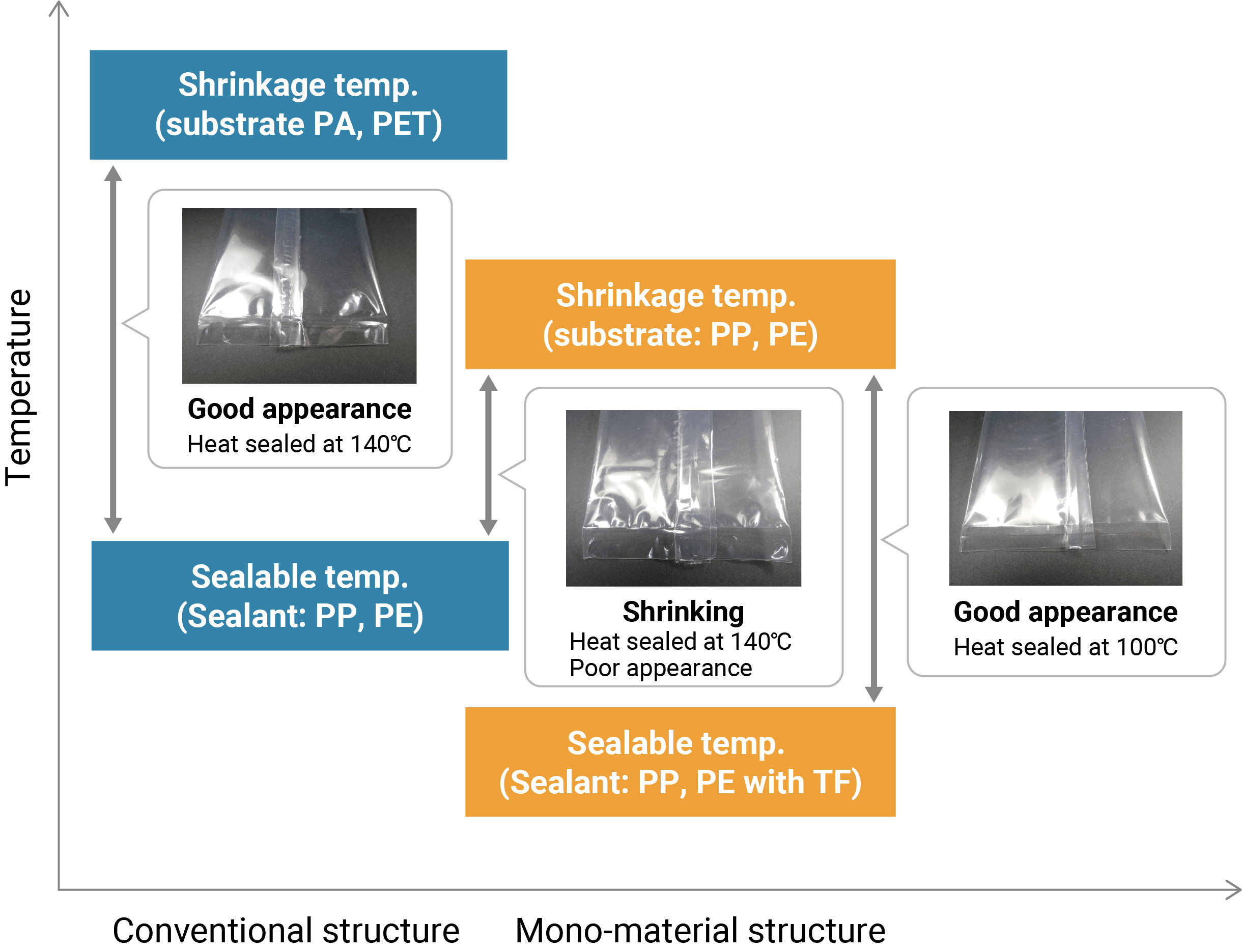

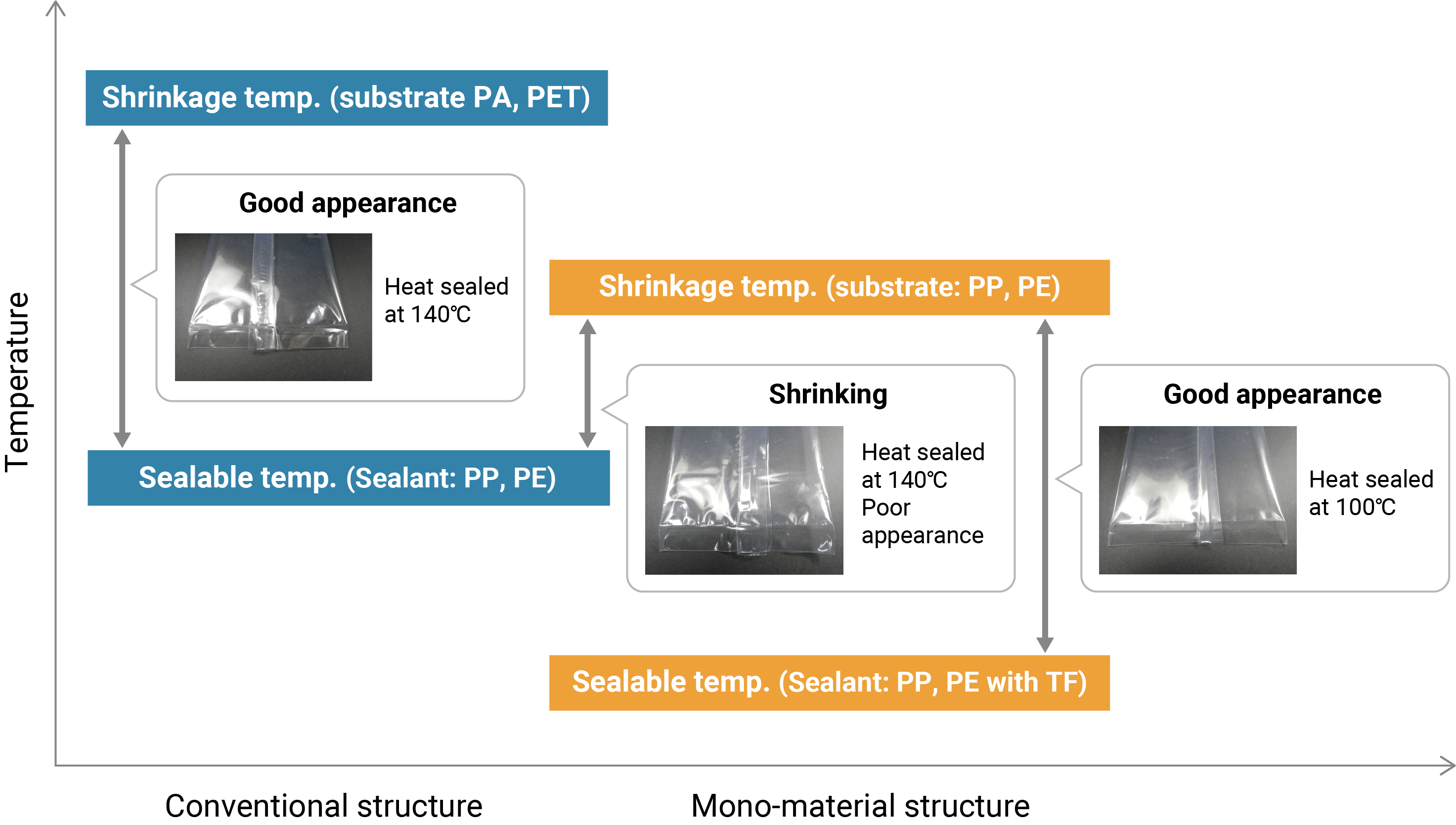

Lowering SIT(seal initiation temperature) is a key factor for better appearance of mono-material packaging.
-

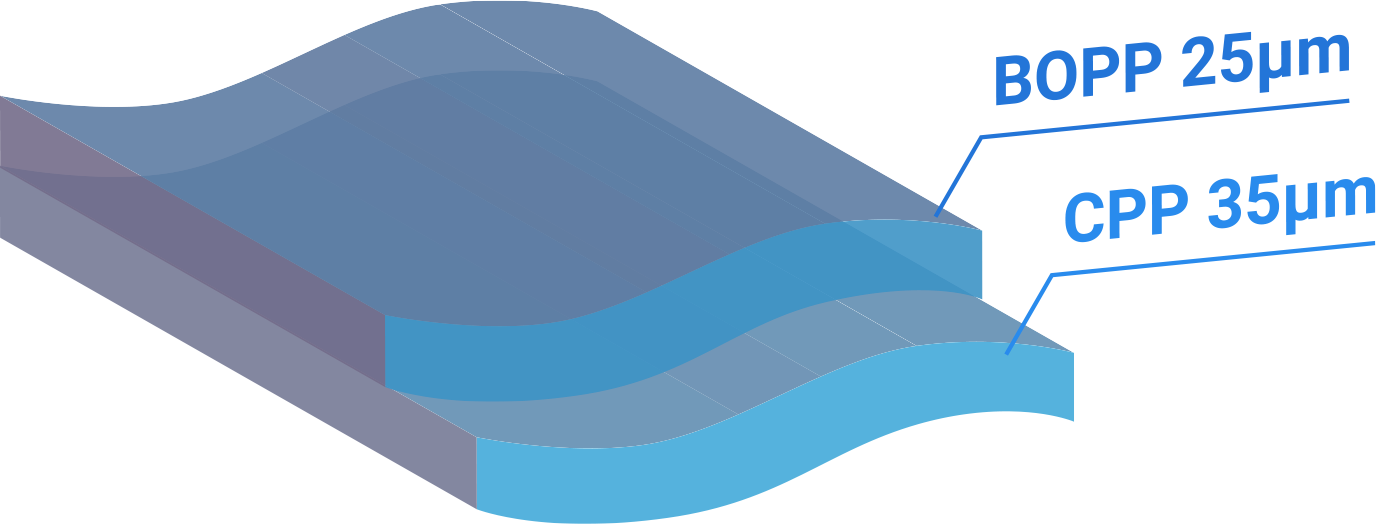

All-PP structure with typical CPP -
-
Heat sealed at 100℃
Not sealable -

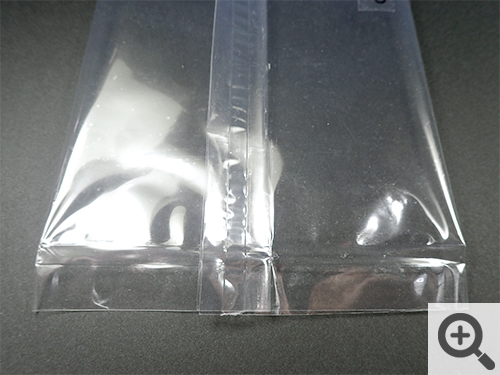

Heat sealed at 140℃

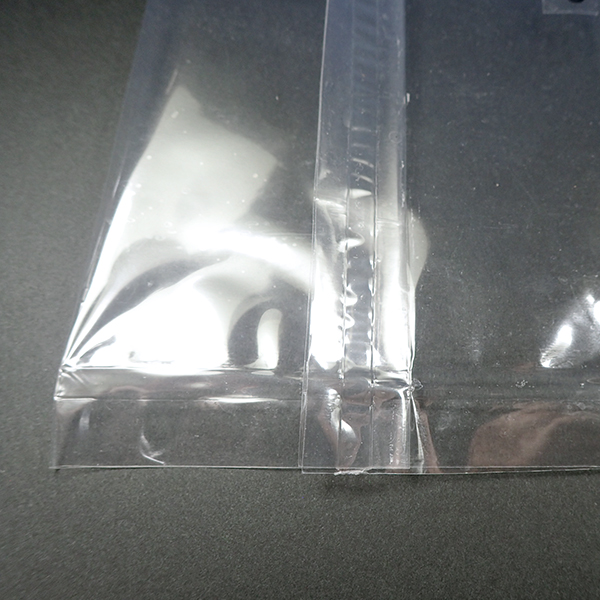

Poor appearance
-

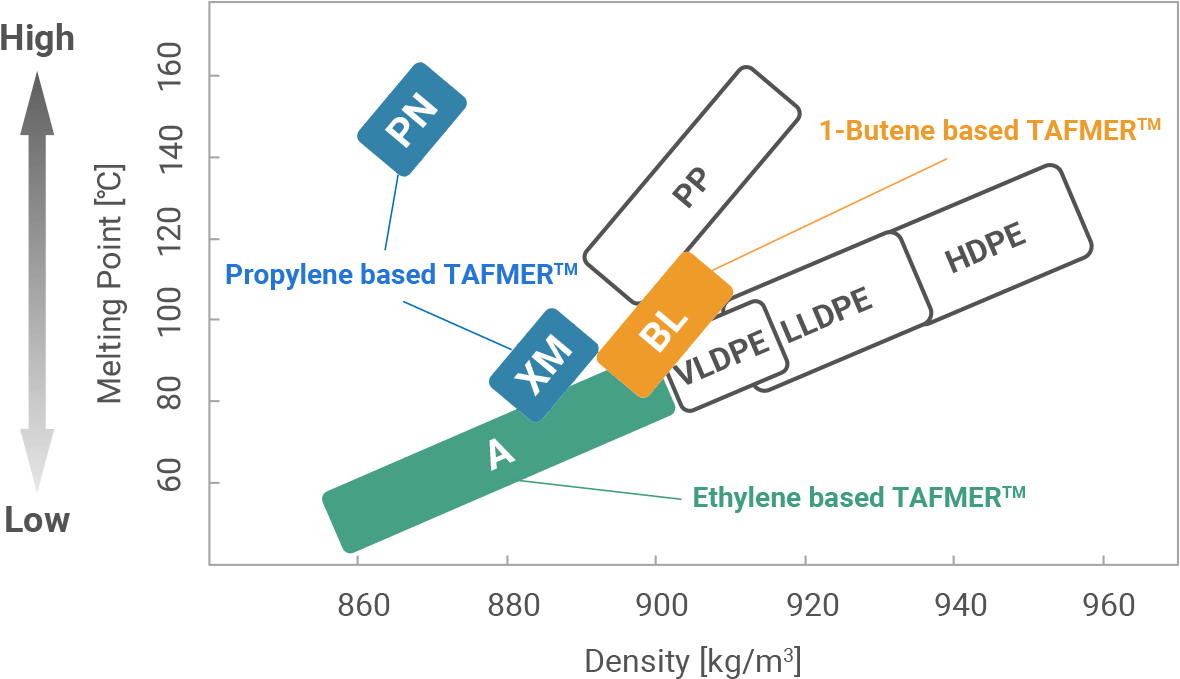

TAFMER™ for PP sealant
Lowering the SIT of cast PP films or increasing seal strength of BOPP film secures a wider melting temperature gap between the sealant and substrate layers.

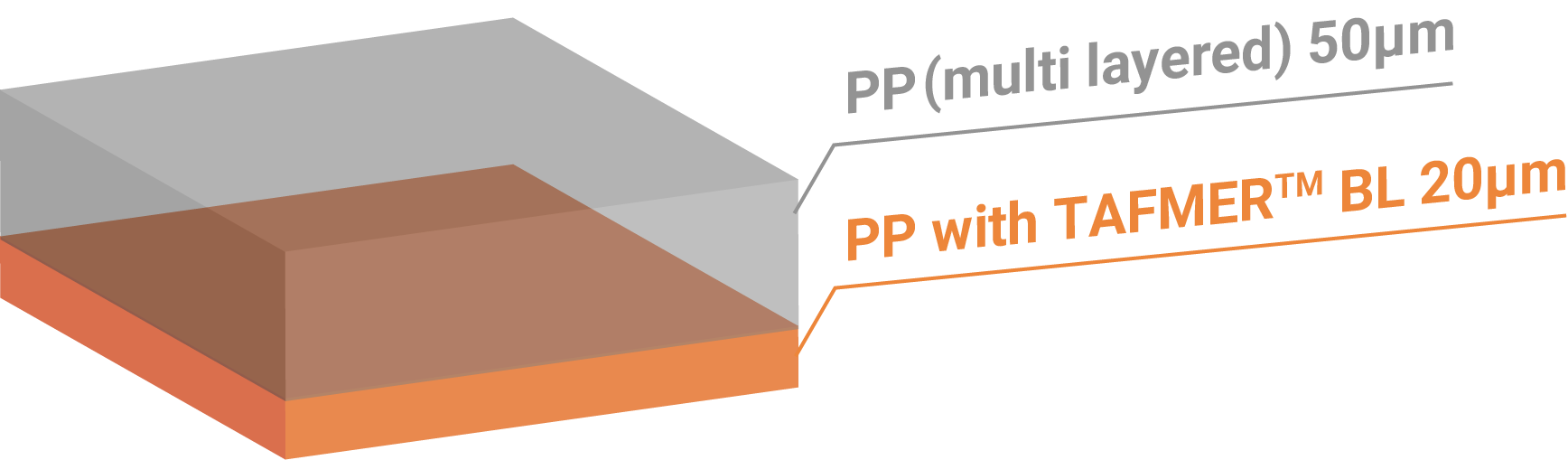

TAFMER™ for PP sealant

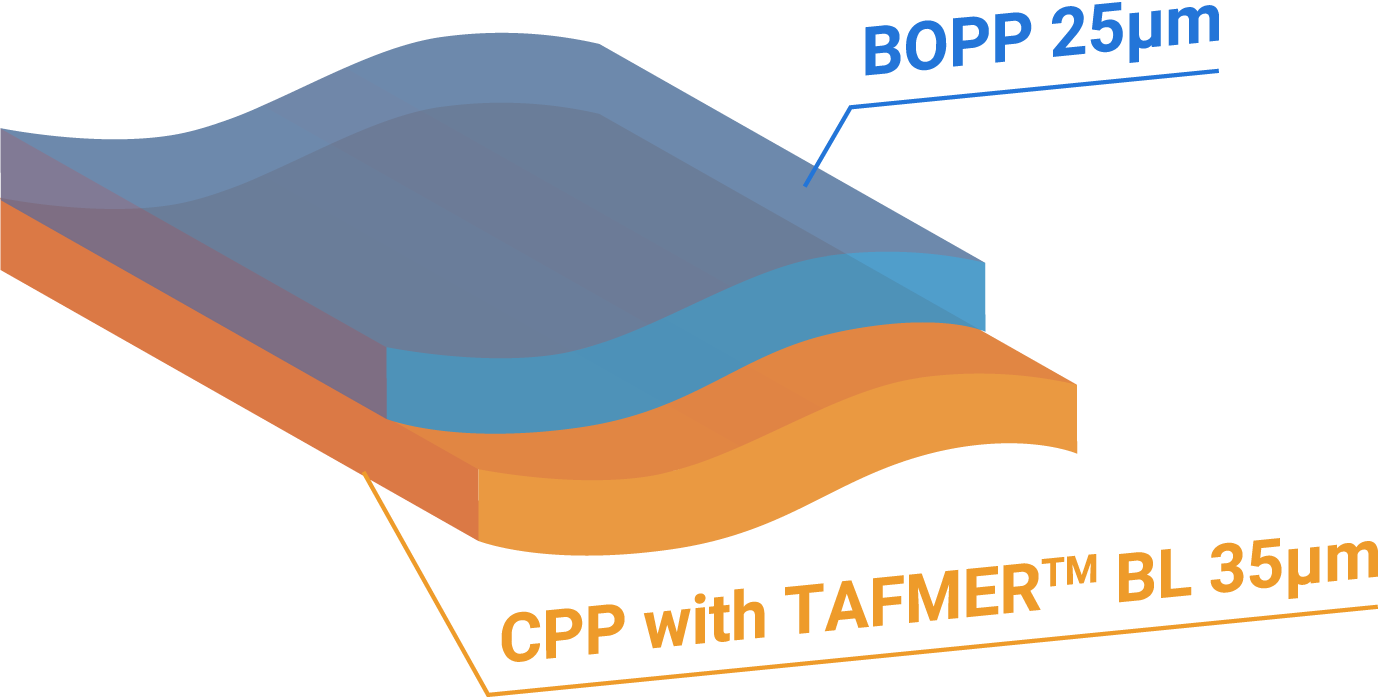

- TAFMER™ BL is a 1-butene based copolymer which is highly compatible with PP.
- TAFMER™ BL significantly lowers and widens the range of HSIT.
TAFMER™ for BOPP sealant
- TAFMER™ XM is a propylene based copolymer which is miscible in PP.
- Low SIT can be achieved by blending TAFMER™ XM with PP.
- TAFMER™ PN is a propylene based material with remarkably high heat resistance in spite of its softness.
- TAFMER™ PN is miscible with PP and has an ability to improve seal strength of BOPP film.

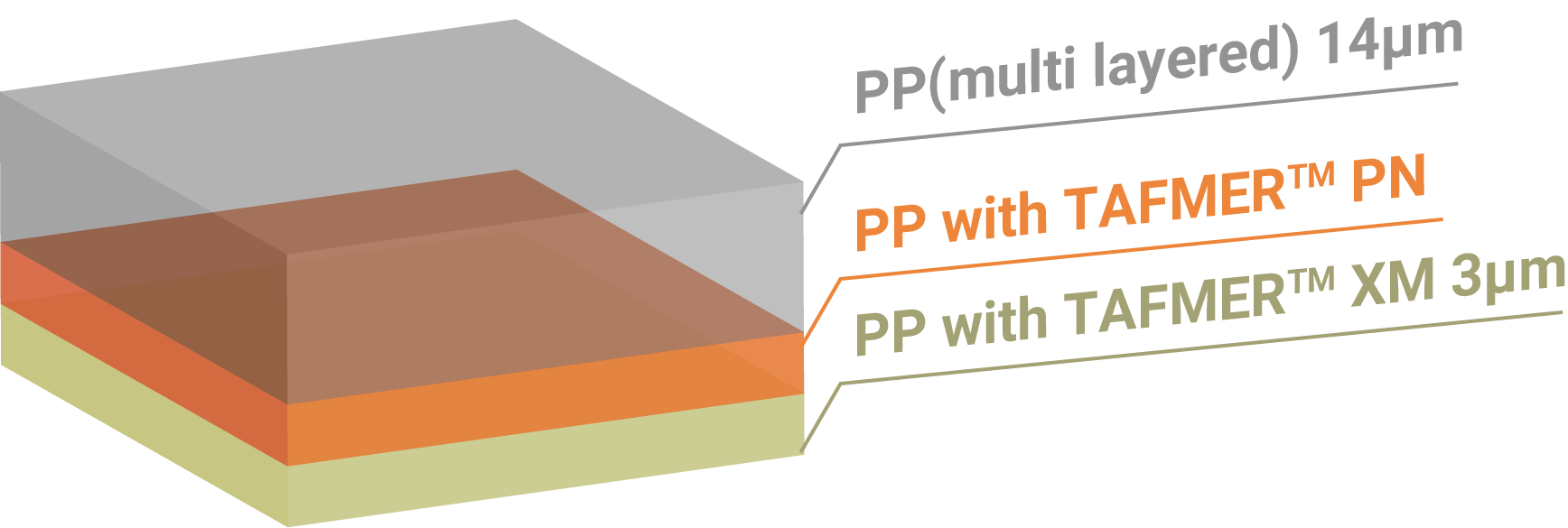

- A target seal strength of 8 – 15 N/15mm can be achieved by adding TAFMER™ XM to the sealant layer, and adding TAFMER™ PN to the neighboring layer.
-
TAFMER™ for PE sealantt

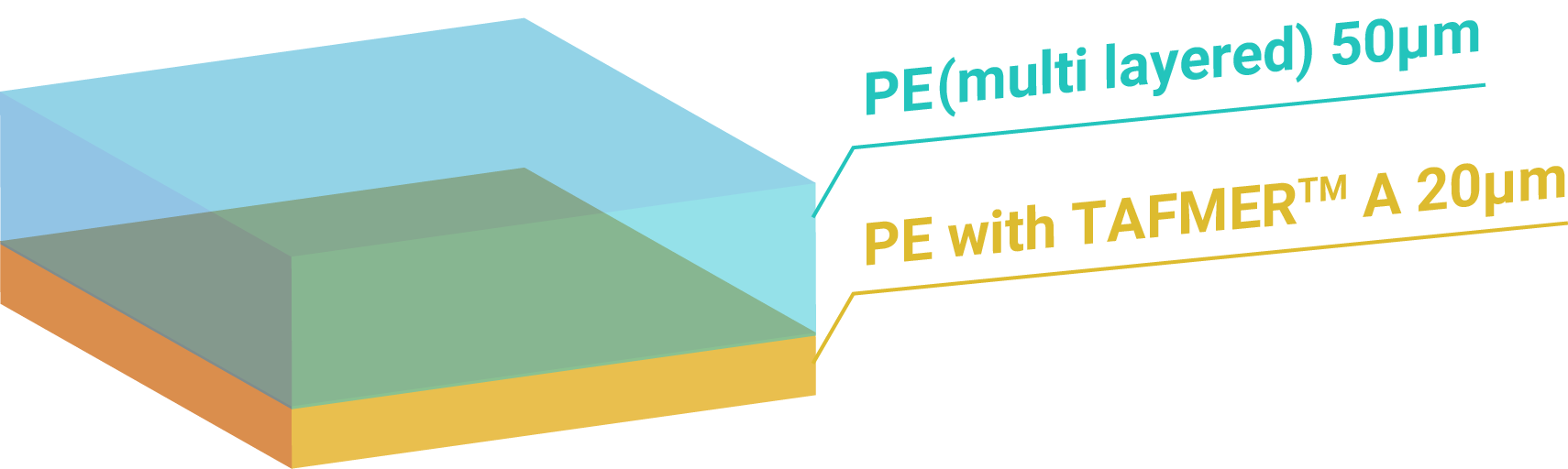

- TAFMER™ A is an ethylene based copolymer which is miscible in LLDPE.
- A target SIT < 100 ℃ can be achieved by blending TAFMER™ A with LLDPE.
