Applications detail

Optical Waveguide for AR Glasses

Applications

Electrical, electronic devices

Characteristics

Impact resistance

Weight reduction

Transparency

Optical properties

Basic information

Diffrar™ is an optical grade polymer wafer that enhances the next generation of AR glasses.
Diffrar™ ’s anticipated application is for optical waveguides.
We believe that Diffrar™ can contribute to improving the safety (high impact resistance) and significantly reducing the weight of AR glasses.

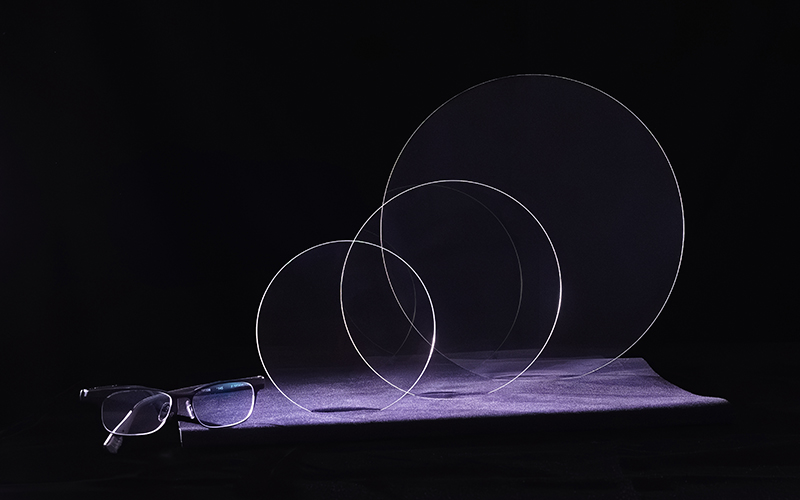

Diffrar™
3-inch, 6-inch, 8-inch

Optical characteristics

Possessing outstanding optical properties, including a high refractive index of 1.67 or higher and extreme flatness, Diffrar™ optical polymer wafers offer wearers of AR glasses a wide Field Of View (FOV).

Properties & Size lineup

The product lineup features wafers ranging from 3 inches to 8 inches in size, providing a variety of options for module manufacturing processes for AR and a wide range of devices.
Diffrar™ has highly advantageous properties as a wafer, for example, exceptional flatness (Low TTV, warp, and Surface Roughness).

Physical properties

Diffrar™ is a polymer based wafer with great impact resistance contributing to safer devices and significantly lighter when compared to glass.

Data table

* Data at 350 um thickness, 3 inch wafer

* The data and contents are for reference and are not a guaranteed values

Material Property	Refractive Index [ne]		1.67	1.74
	Abbe number		31	32
	Birefringence [nm]		≦ 2	≦ 2
	Internal Transmittance t=10mm [%]	440nm	98.5	91.2
		460nm	99.4	97.1
		480nm	99.7	98.5
	Specific Gravity		1.37	1.47
